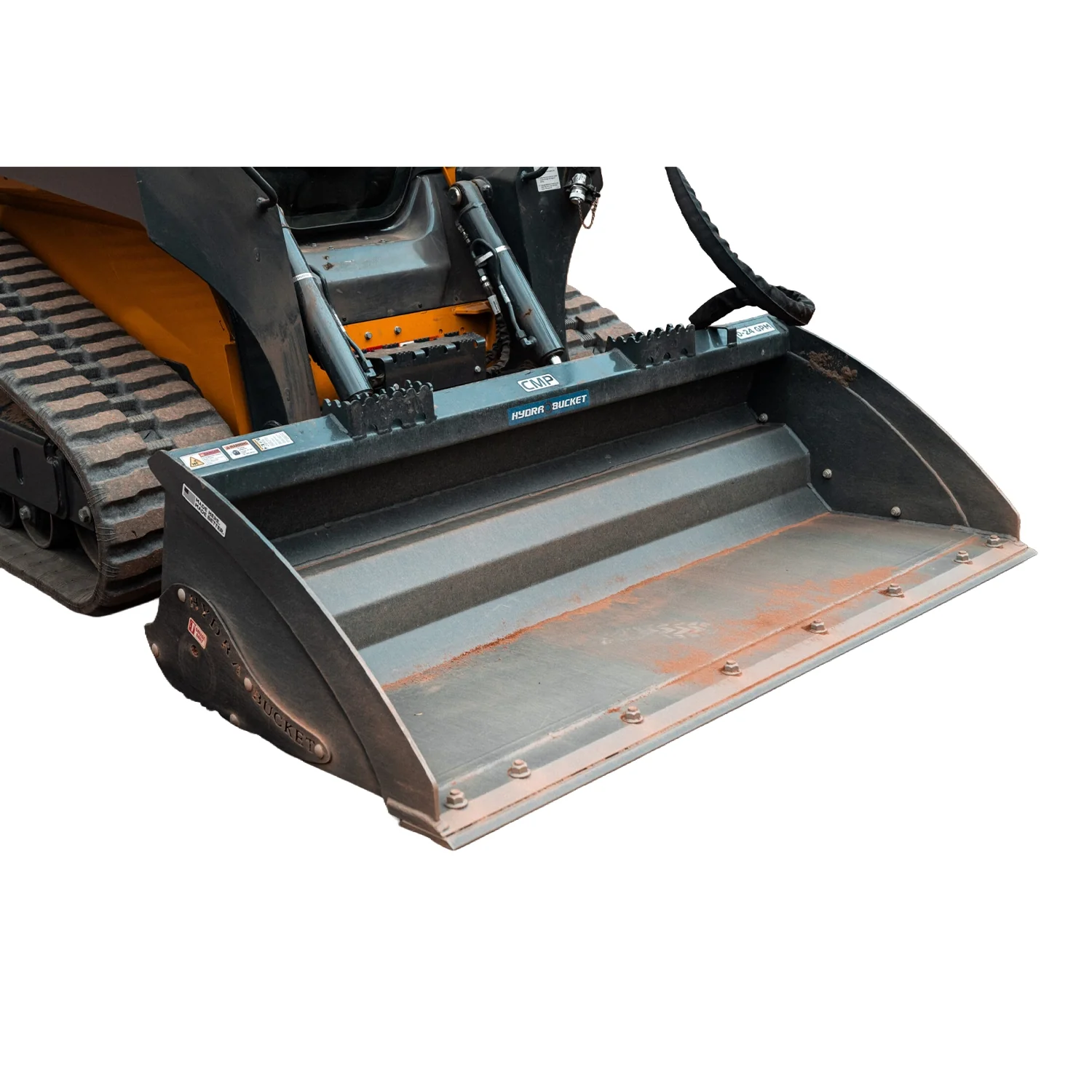

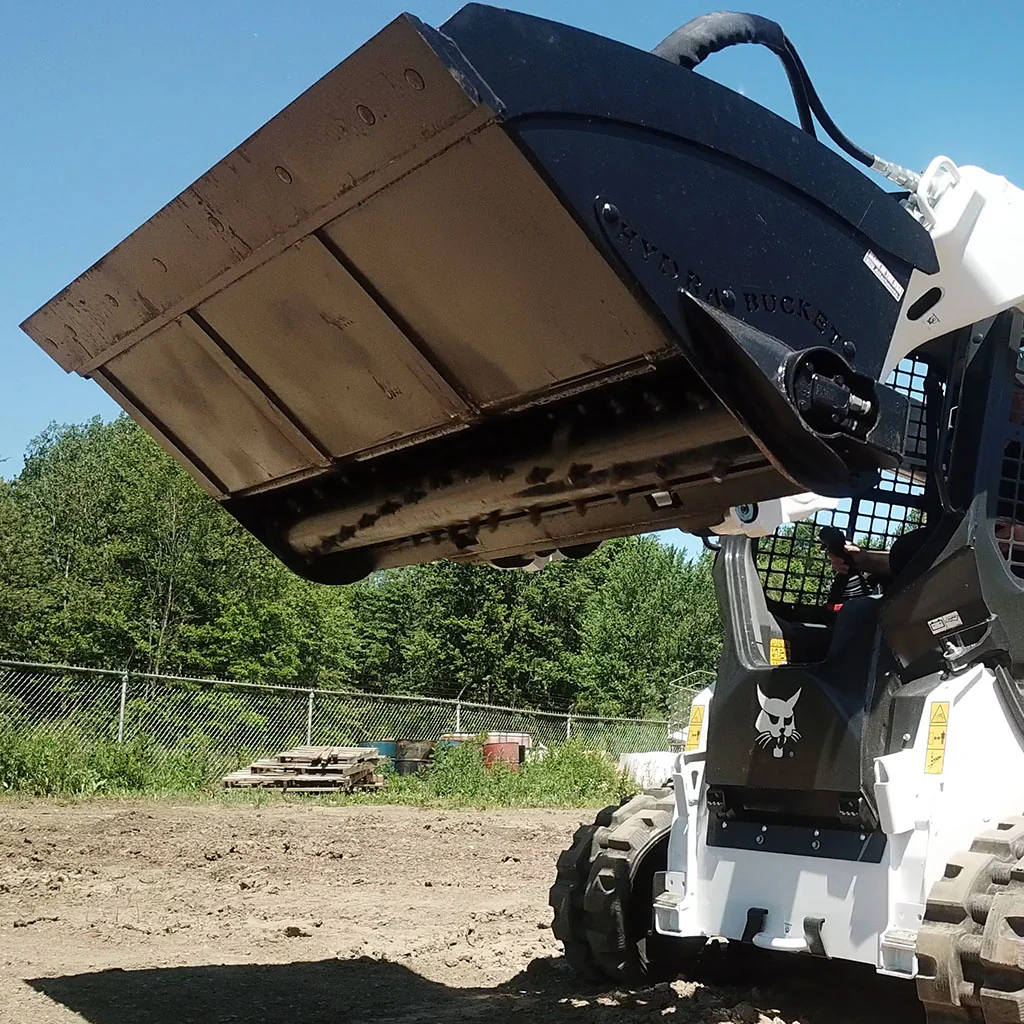

HYDRA BUCKET - CMP ATTACHMENTS

DESCRIPTION

The Hydra-Bucket is the most versatile bucket on the market. It's the swiss army knife for your skidsteer. It has zero competition because their is none, it's a CMP exclusive. We've designed an attachment that will serve as an ultra heavy duty traditional bucket, but also give you the option to grind, shred, and pulverize stumps, brush, dirt, and basically anything that gets in your way, on the fly. The secret is our patent pending revolutionary design: a motorized drum, covered in carbide teeth, sits inside the heel of the bucket, putting out 6,700 in/lbs of torque! It comes in a variety of sizes to suit your needs, see chart below. Watch some videos too, you have to see this thing to believe what it can do!

FEATURES

Made with AR400, AR200, and Grade 50 material.
5" ball bearings that are triple sealed to protect from the elements.
2 cutting edges leading up to the drum to shred anything trying to get through.
6,700 in/lb Char-Lynn hydraulic motor housed inside the drum for ultimate protection.
Ultra hard carbide cutter teeth on drum.
Get additional control from the direct-drive and powerful motor which only protrudes 2.5" beyond the side plate.
Crossover relief valves to help dampen shock to the hydraulic system.
Use as a brush mower, stump grinder, dirt/cement/gravel leveler, prepare dirt for preseeding, or even use as a fifth wheel to pull your skid out of slippery situations.

SPECS

Models	HB60	HB66	HB72	HB78	HB84
Width	60"	66"	72"	78"	84"
Struck Volume	10 1/4 FT³	11 1/4 FT³	12 3/8 FT³	13 3/8 FT³	14 3/8 FT³
Heaped Volume	15 3/4 FT³	17 1/2 FT³	19 FT³	20 3/4 FT³	22 1/2 FT³
Weight	810 lbs.	870 lbs.	915 lbs.	960 lbs.	1,015 lbs.

CMP Attachments - Catalog

Price

Collections

Side Dump Bucket | CMP Attachments

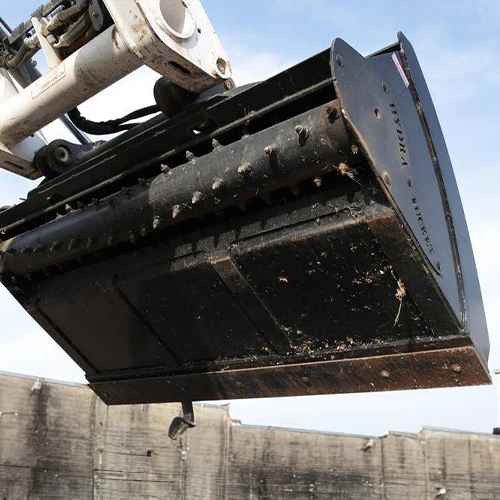

Hydra Bucket - Rental

Hydra Bucket | CMP Attachments

Mini Hydra Bucket | CMP Attachments

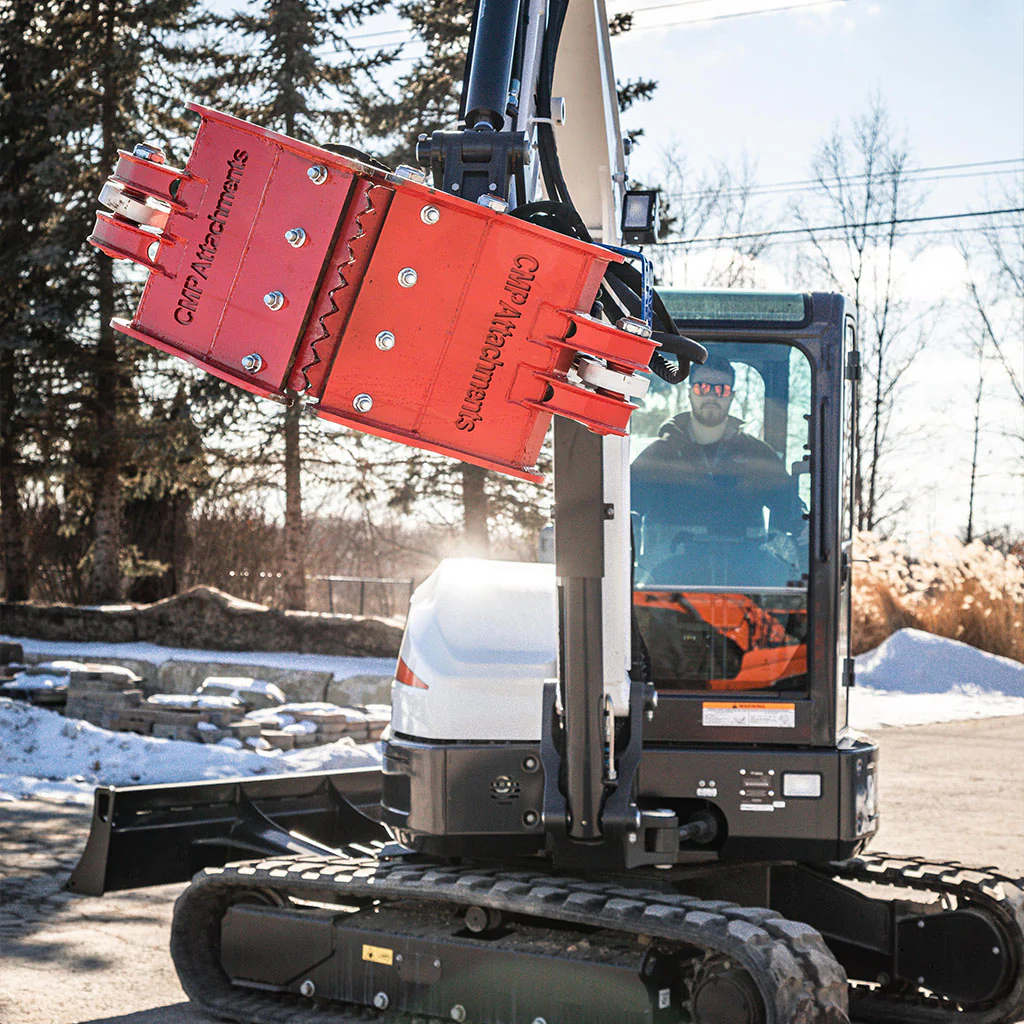

Hydra Grapple - Rental
